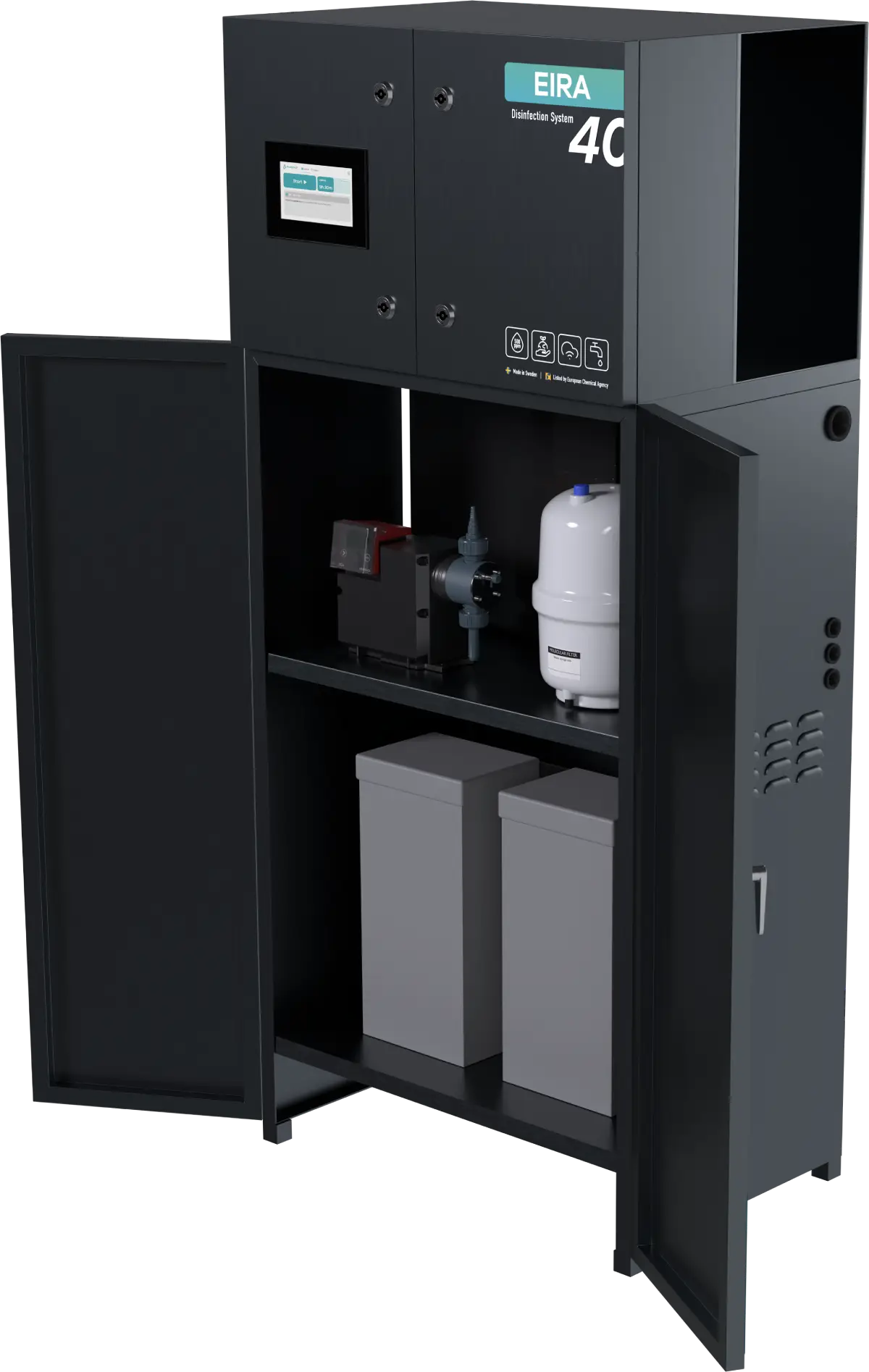

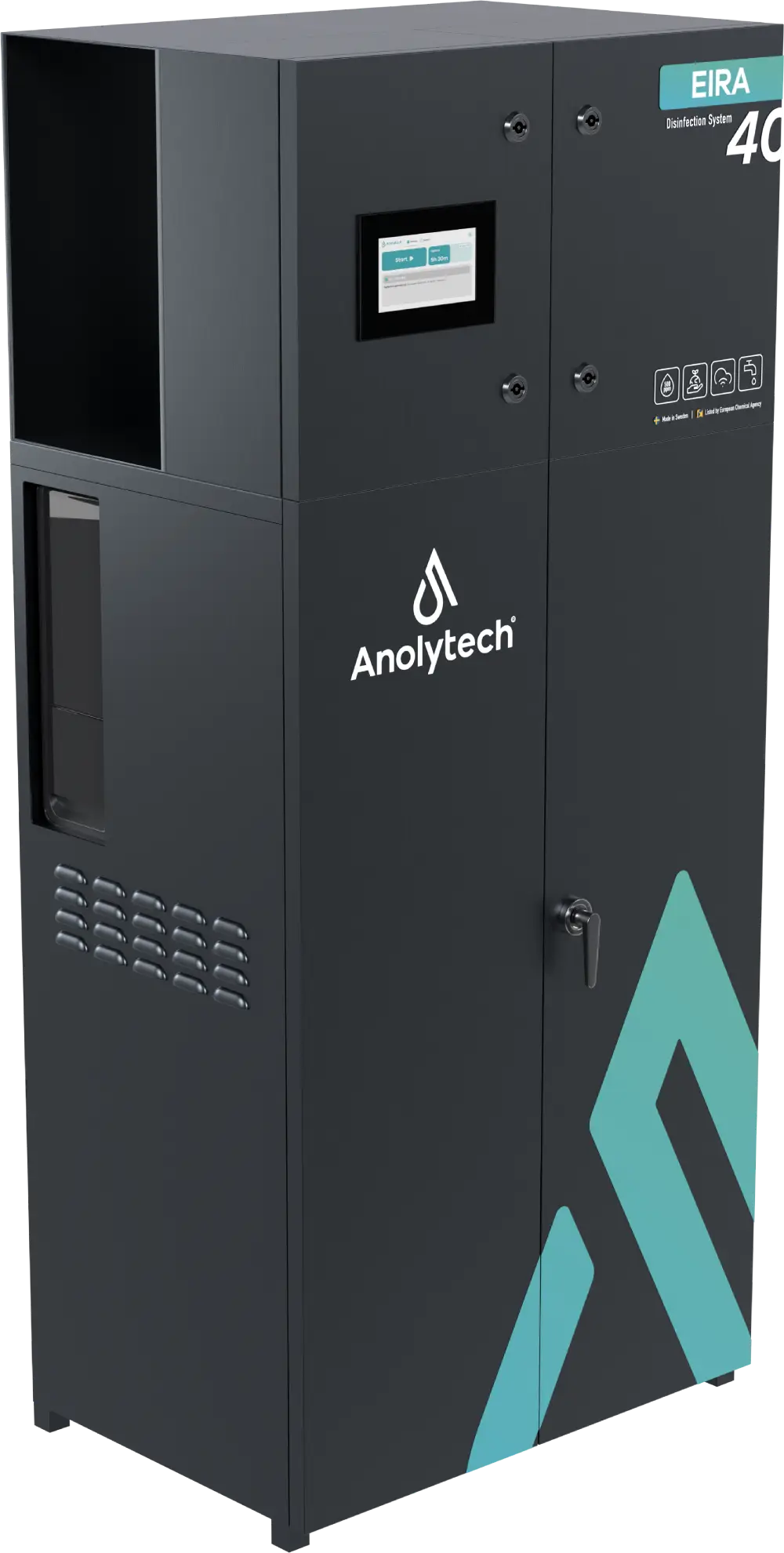

Eira Disinfection System M40

The Eira series is designed to meet the property sector’s need for safe water and protection against bacteria such as Legionella. The Eira M40 produces up to 40 liters of AnoDes per hour and is a model suited to properties with higher water consumption. A reliable choice for facilities that need a robust, sustainable solution for bacteria-free water and dependable operation.

Eira Disinfection System M40

The Eira series is designed to meet the property sector’s need for safe water and protection against bacteria such as Legionella. The Eira M40 produces up to 40 liters of AnoDes per hour and is a model suited to properties with higher water consumption. A reliable choice for facilities that need a robust, sustainable solution for bacteria-free water and dependable operation.

What you get

The benefits of on-site produced disinfection

Take a closer look

Technical

Specifications

Cabinet depth

490 mm

Cabinet width

800 mm

Cabinet height

1900 mm

Max. power consumption

0,5 kW

Concentrate strength

500 ppm/50 mg

Capacity (drinking water m³/day)

Up to 400 m3

Areas of application

Anolytech’s system ensures safe water and Legionella protection for residential buildings, care facilities, hotels, spas, and bathhouses.

Anolytech V4 – the next generation of water disinfection

With the V4 series, we take water disinfection to the next level. Using sustainable technology, it provides effective protection against bacteria, viruses, fungi, and mold – completely without harmful chemicals. The new V4 consists of four model series – Freja, Eira, Sindri, and Njord – each adapted to different industries and needs. Every series combines purposeful design, smart control, and high operational reliability to deliver a disinfection solution tailored to your requirements.

News

Continuous improvement is at the heart of Anolytech, bringing you modern solutions that are smarter, stronger, and more sustainable.
Model 5

M5

our smallest machine, designed for facilities with lower water consumption.

Updated look

modern design in a compact cabinet. We offer a flexi
version of each machines if
space is limited.

add-ons

Flexible solution

optional add-ons available to tailor the system to customer-specific needs.

Stable and reliable operation

robust construction, osmosis filter to reduce interruptions, and built-in modem for remote monitoring and service.

Smart and user-friendly control

machine learning that optimizes operation, plus a clear interface that simplifies operation.

95%↓

Efficient resource use

up to 95% lower salt consumption, reducing logistics and environmental impact.

How it works

The V4 series

The system uses water, salt, and electricity to produce AnoDes through electrolysis. A carefully controlled process adjusts the pH level to achieve maximum disinfection efficiency. AnoDes is then dosed in small amounts into the water system, in accordance with national drinking water regulations.

The installation takes place in two steps. First, an injector is prepared for the facility’s existing system (provided by Anolytech but installed by the customer). Then Anolytech’s technicians install the disinfection system.

After installation, the system runs automatically. The only requirements are adding salt tablets and changing filters when needed. The components are built for continuous operation, 24/7 year-round, and the system is energy-efficient with low power consumption.

See all machines from this series

The size of Anolytech machines depends on the customer’s needs: from small installations for local use to large systems for large-scale production.

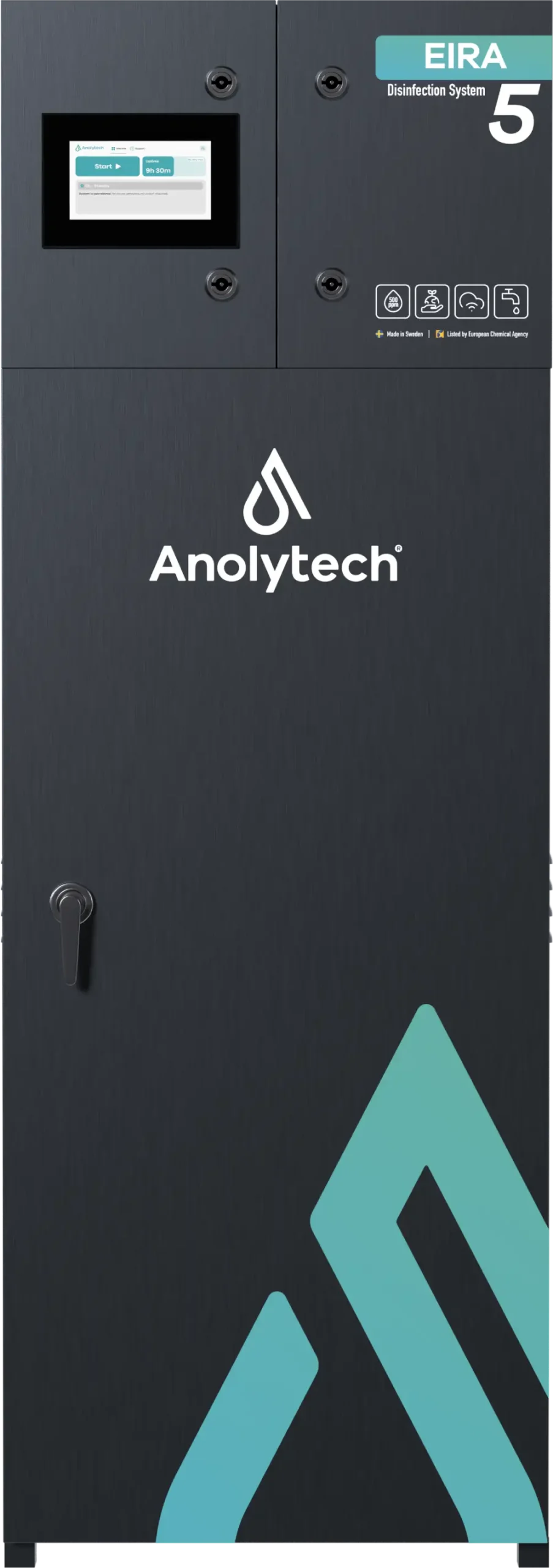

EIRA Disinfection System M5
Standard / 40L tank

Produces up to 5 liters of AnoDes per hour. Suitable for smaller farms with low water consumption.

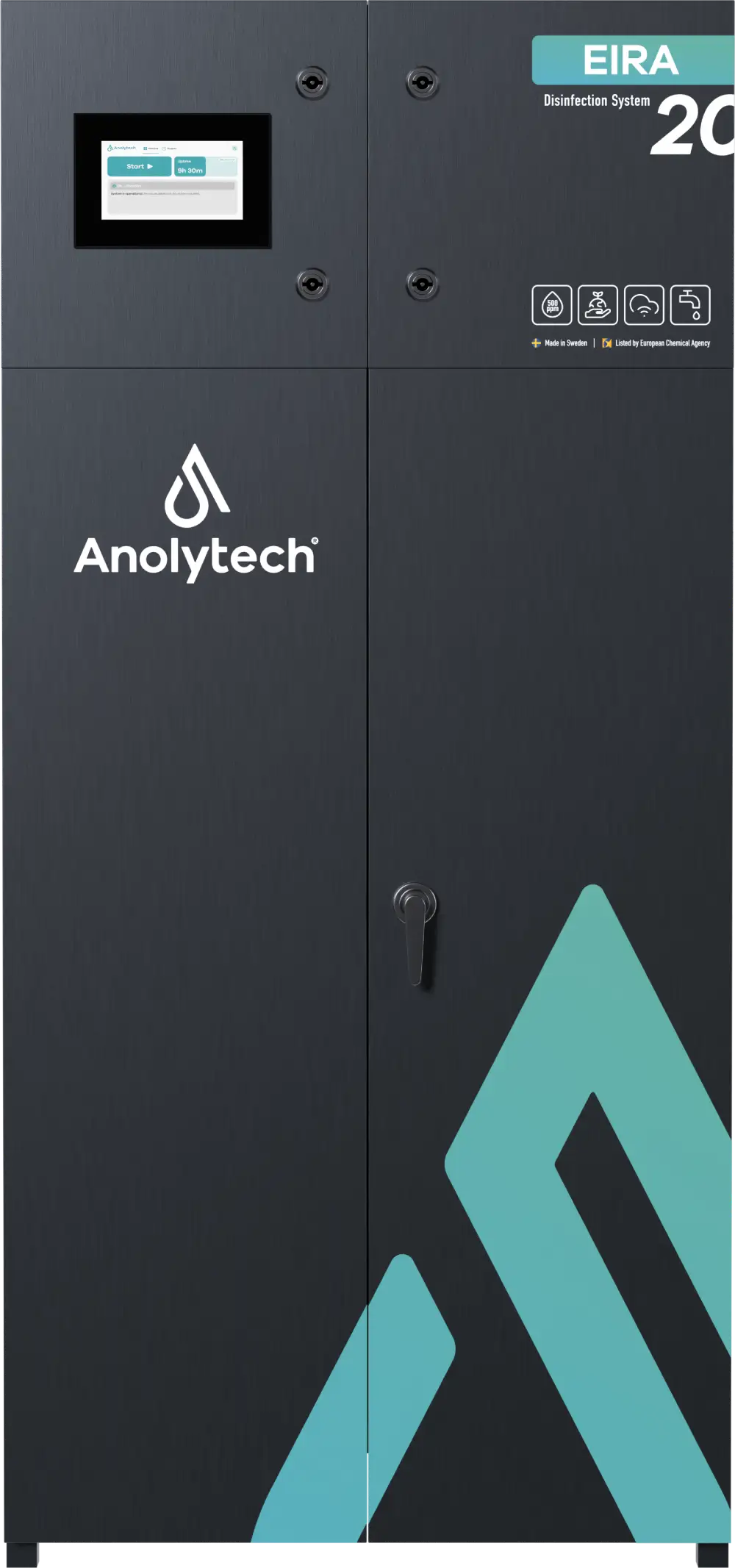

EIRA Disinfection System M20
Standard / 40L tank

Produces up to 20 liters of AnoDes per hour. A reliable choice for most farms that need a safe and sustainable disinfection solution.

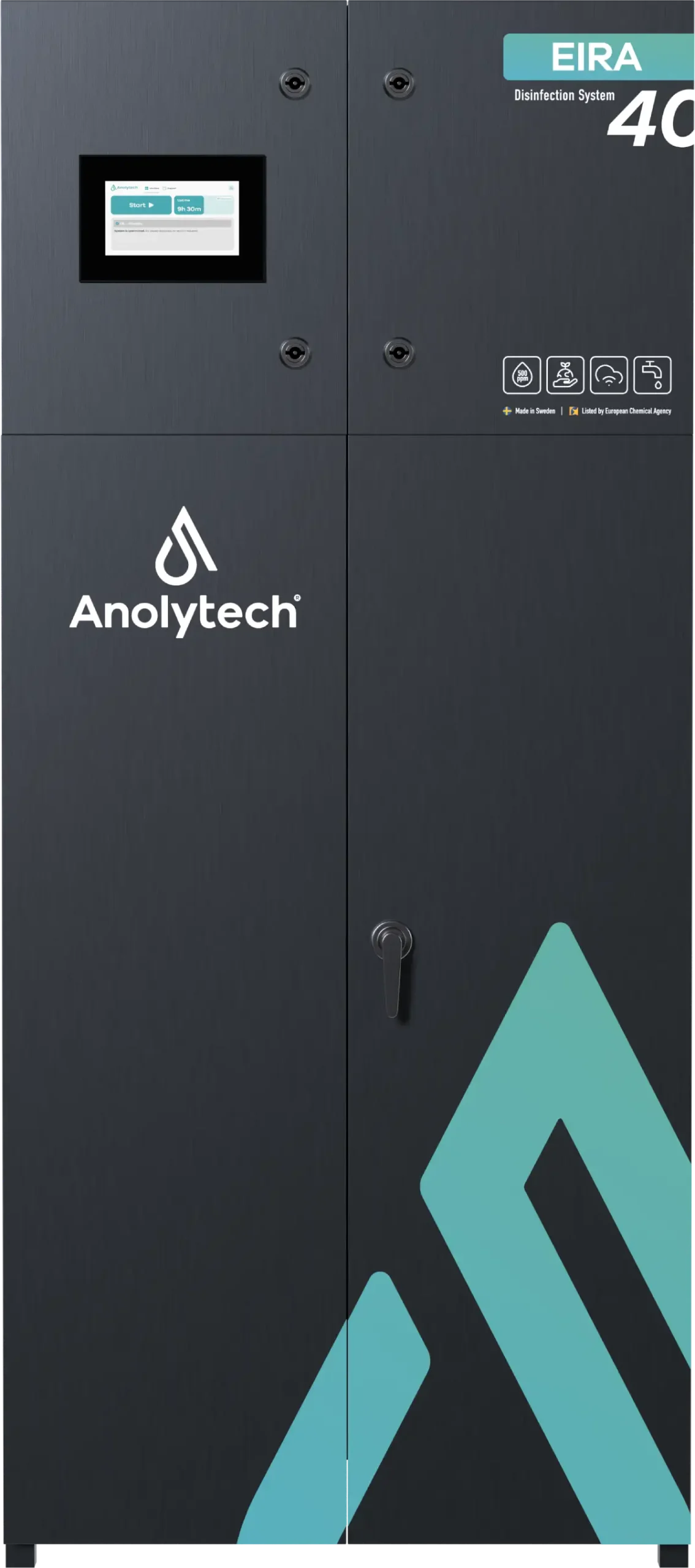

EIRA Disinfection System M40
Standard / 40L tank

Produces up to 40 liters of AnoDes per hour. Developed for large farms with high water consumption and stringent reliability requirements.

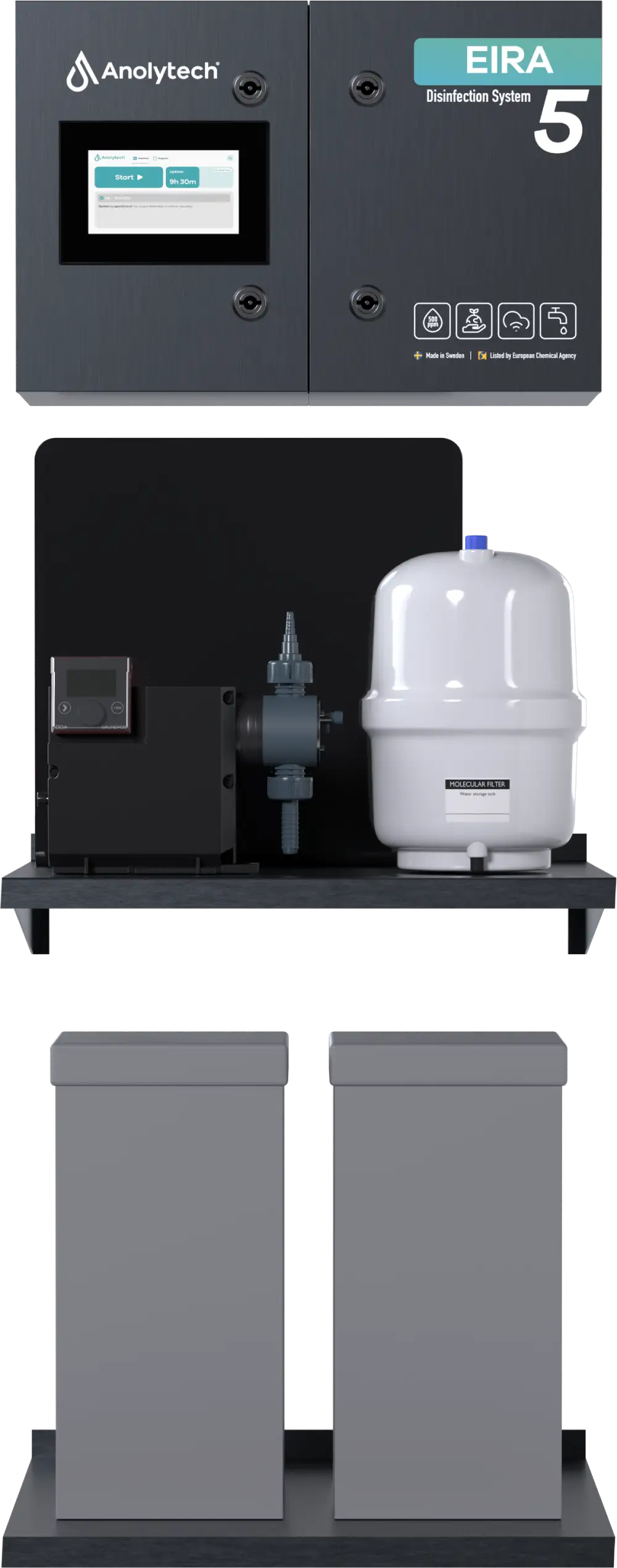

EIRA Disinfection System M5
Flexi / 40L tank

Compact, flexible model producing up to 5 liters of AnoDes per hour. The flexible design makes it easy to install even in tight spaces.

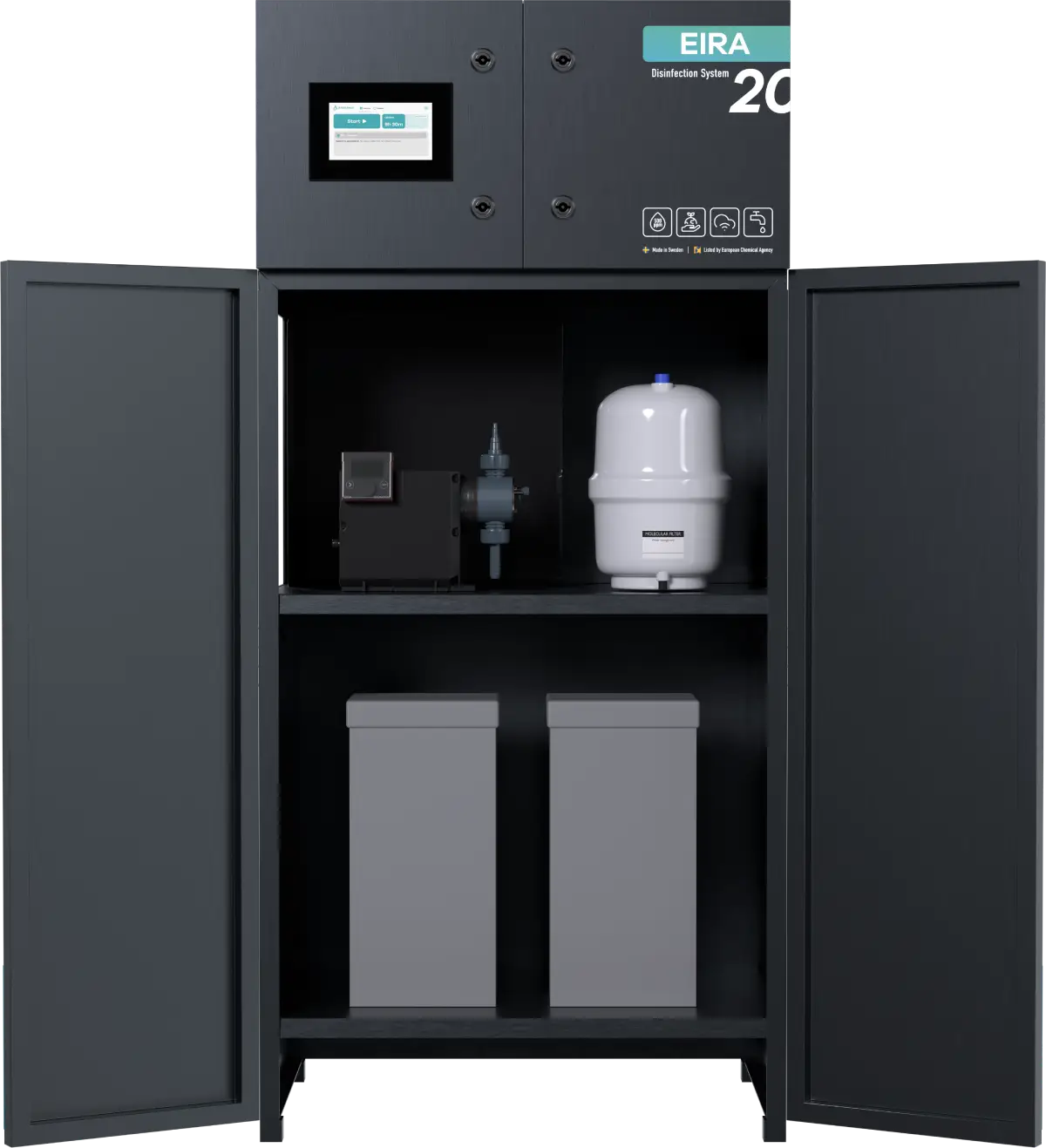

EIRA Disinfection System M20
Flexi / 40L tank

Produces up to 20 liters of AnoDes per hour. A reliable choice for most farms that need a safe and sustainable disinfection solution. The flexible design makes it easy to install even in tight spaces.

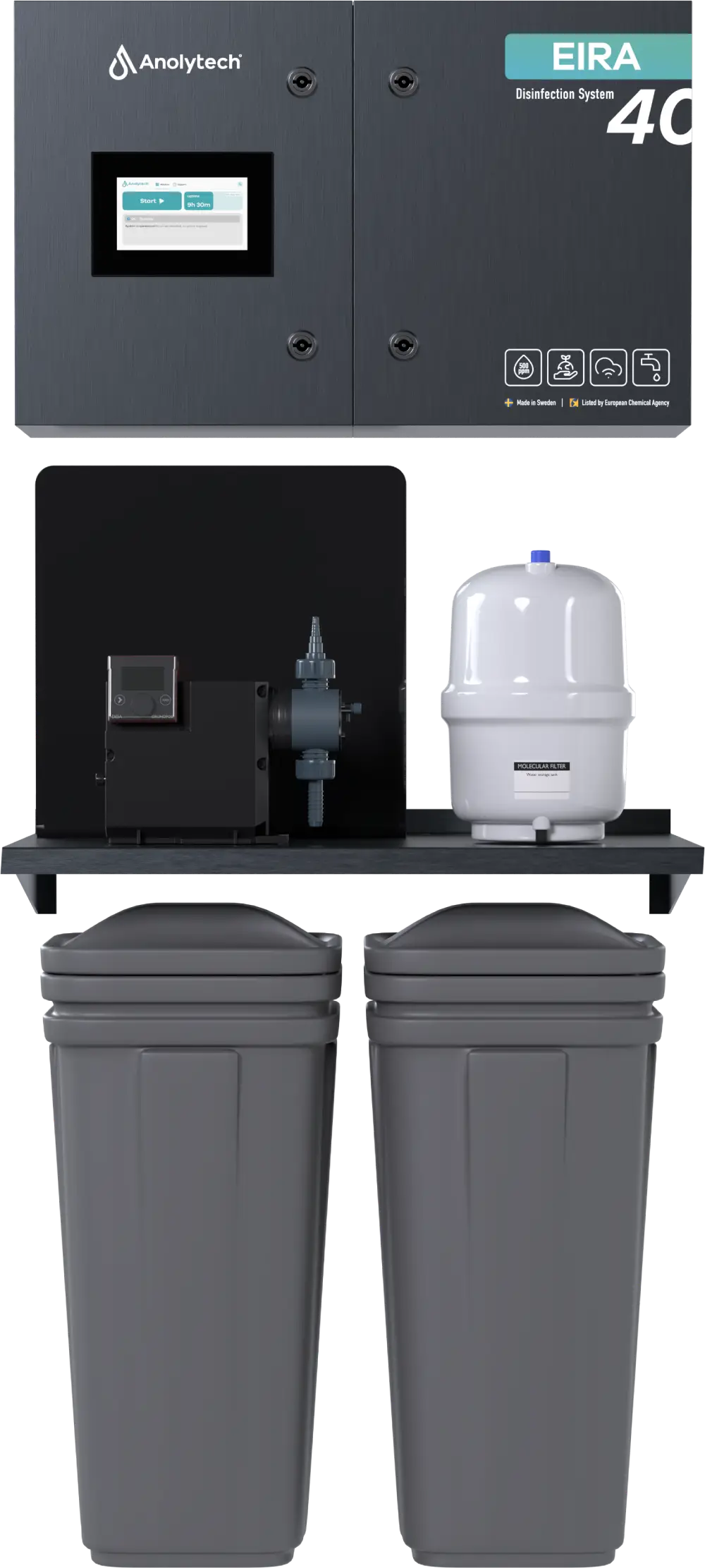

EIRA Disinfection System M40
Flexi / 40L tank

Produces up to 40 liters of AnoDes per hour. Developed for large farms with high water consumption and stringent reliability requirements. The flexible design makes it easy to install even in tight spaces.

Add-ons

Reinforced hose 6 mm (meter)

Pressure-resistant reinforced hose with 6 mm inner diameter. Used to extend dosing installations where the pump is positioned...Read More

Pressure-resistant reinforced hose with 6 mm inner diameter. Used to extend dosing installations where the pump is positioned further from the injection point. Suitable for both cold and hot water applications. Sold by the meter.

Injector large

Injector for dosing in water pipes, intended for flow rates over 60 l/h. Used together with a dosing...Read More

Injector for dosing in water pipes, intended for flow rates over 60 l/h. Used together with a dosing pump to create additional dosing points in the system. Handles high flow rates and is used in larger facilities. Suitable for cold water – Max 45 °C.

Alarm light

Signal and alarm light that clearly displays the current status of the system. Can be mounted close to...Read More

Signal and alarm light that clearly displays the current status of the system. Can be mounted close to machine or at a distance for better visibility. Provides quick indication in case of malfunctions or alarms.

Water softener incl. separate salt tank

Complete softening package with water softener and separate salt extra capacity is needed – for example, multiple incoming...Read More

Complete softening package with water softener and separate salt extra capacity is needed – for example, multiple incoming water lines or high levels of lime (Ca) in the water. Improves water quality by reducing water hardness and protects the system from lime scale buildup.

Signal cable

Signal cable for connection to dosing pumps, especially for the installation of additional dosing points. Ensures proper communication...Read More

Signal cable for connection to dosing pumps, especially for the installation of additional dosing points. Ensures proper communication between the pump and the control system.

Ultrasonic meter-TT01 (Storlek L)

Ultrasonic flow meter for water pipes with dimensions DN25–400 (pipe 33–405 mm). Non-contact flow measurement through the pipe...Read More

Ultrasonic flow meter for water pipes with dimensions DN25–400 (pipe 33–405 mm). Non-contact flow measurement through the pipe wall. Can be used as an alternative to mechanical water meters. Not suitable for mixed materials.

Water meter Q3-4

Mechanical water meter for measuring water flow in piping systems. Suitable for smaller pipe dimensions. Used in combination...Read More

Mechanical water meter for measuring water flow in piping systems. Suitable for smaller pipe dimensions. Used in combination with injector and bypass system. Connection is G25 and the meter handles temperatures up to 30 °C.

Water meter Q3-10

Precise mechanical water meter for measuring flow in medium-sized pipe dimensions. Robust design, suitable for use in facilities...Read More

Precise mechanical water meter for measuring flow in medium-sized pipe dimensions. Robust design, suitable for use in facilities requiring continuous flow monitoring. Connection is DN25 (1") and the meter handles temperatures up to 45 °C.

Consumables

Particle filter 1 micron

Particle filter for capturing very small particles down to 1 micron. Used as a pre-filter or control filter...Read More

Particle filter for capturing very small particles down to 1 micron. Used as a pre-filter or control filter in n systems. Extends the lifespan of equipment by reducing particle contamination. Especially suitable for older machines: V2, V2R and V3.

Portable Hanna instrument (total chlorine)

Handheld digital instrument for measuring total chlorine in water (0–5 ppm). Provides accurate and rapid on-site measurements. Requires...Read More

Handheld digital instrument for measuring total chlorine in water (0–5 ppm). Provides accurate and rapid on-site measurements. Requires supplement with liquid reagents. Perfect for routine checks in water treatment facilities.

Liquid reagent for Hanna instrument (total chlorine)

Liquid reagent for use with Hanna’s measuring instrument for total chlorine. One package contains 300 doses. Essential for...Read More

Liquid reagent for use with Hanna’s measuring instrument for total chlorine. One package contains 300 doses. Essential for performing accurate chlorine measurements in water samples. For professional use in facilities working with water treatment.

Legionella test lab test

Laboratory test according to ISO 11731:2017 for accurate identification of Legionella in drinking water. sample is submitted in...Read More

Laboratory test according to ISO 11731:2017 for accurate identification of Legionella in drinking water. sample is submitted in the included packaging. Provides exact CFU values (colony-forming units). The test must be analyzed within 24 hours of sampling.

Legionella test rapid test

Rapid test for Legionella (Ultra One), lateral flow type. Provides results within 25 minutes and is used on-site...Read More

Rapid test for Legionella (Ultra One), lateral flow type. Provides results within 25 minutes and is used on-site in high-risk environments such as showers, cooling towers, water tanks, and pools. Sensitivity: 100 CFU/liter. Shelf life: 18 months from manufacturing date.

Descaling agent

Mars 2PC – an effective descaling agent for cleaning the internal parts of the machine. Removes limescale and...Read More

Mars 2PC – an effective descaling agent for cleaning the internal parts of the machine. Removes limescale and extends the lifespan of the equipment. Sold only in cartons of 3 bottles. Suitable for Anolytech's systems and similar dosing equipment.

Test strips free chlorine

Rapid test strips for free chlorine in water, measurement range 0–5 ppm. Provides a visual indication of chlorine...Read More

Rapid test strips for free chlorine in water, measurement range 0–5 ppm. Provides a visual indication of chlorine level within seconds. Ideal for daily checks in smaller facilities or as a complement to digital instruments.

Particle filter 10 micron BB (full box)

Coarser particle filter with the capacity to filter particles down to 10 Used as a pre-filter in high-flow...Read More

Coarser particle filter with the capacity to filter particles down to 10 Used as a pre-filter in high-flow systems (Big Blue format). Protects equipment from particles and sediment. Primarily suitable for older machines: V2, V2R and V3, but also for new machines equipped with optional pre-filters. Full box, 6 psc.

Let’s Start

Interested in securing bacteria-free water?

Ready to transform your water systems with sustainable disinfection? Whether you’re looking to buy or rent, our team is here to help you find the perfect solution for your needs. Take the first step toward safer and cleaner water today!
